Ohio Scientific Inc. began in Hiram, Ohio around 1975. They were the first company to provide systems with Microsoft's floating point BASIC in ROM (1977), and by the time the company was sold in 1981, they had produced a number of systems both popular with hobbyists and used in small businesses. A fully expanded OSI system included options for home automation using a BSR X-10 AC interface, home security using a number of switch & sensor inputs, speech synthesis using a Votrax module, and DTMF decoding for phone applications. Storage started with inexpensive standard audio cassettes, the more advanced 5.25 or 8" floppy disk storage, or even a Winchester hard disk storage system. I/O included A/D, D/A converters, joystick, serial & parallel ports, EPROM programmers & prototype boards. Business systems could include a 3 CPU processor card which could run 6502, 6800 or Z80 software on a time share system with 16 terminals.

The UK101 was a version of the OSI 600 Superboard, similar to the one shipped in the C1-P, modified for use in the UK and Australia. The hardware was nearly the same, the system and BASIC ROMS began as modified versions of the OSI ROMS.

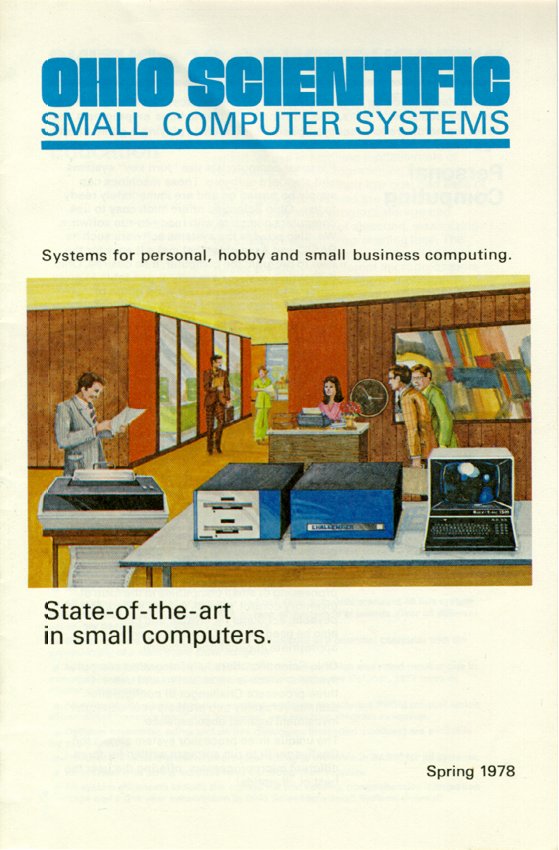

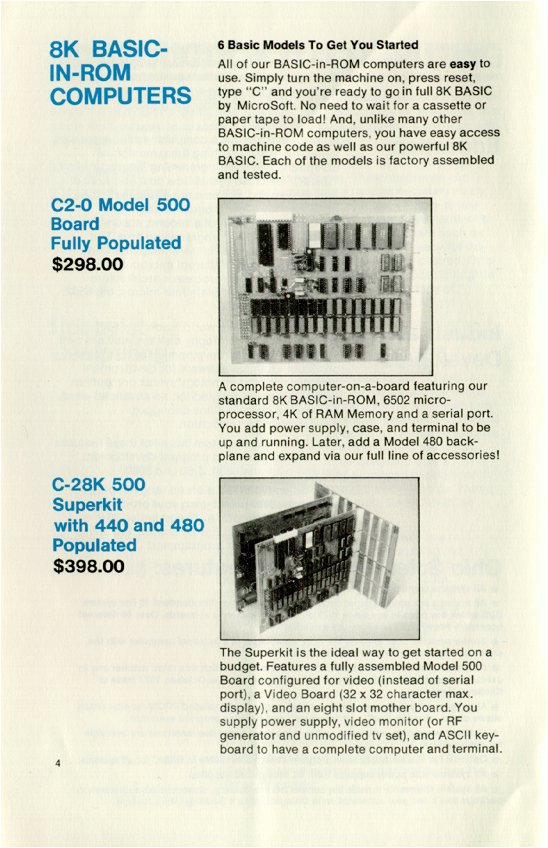

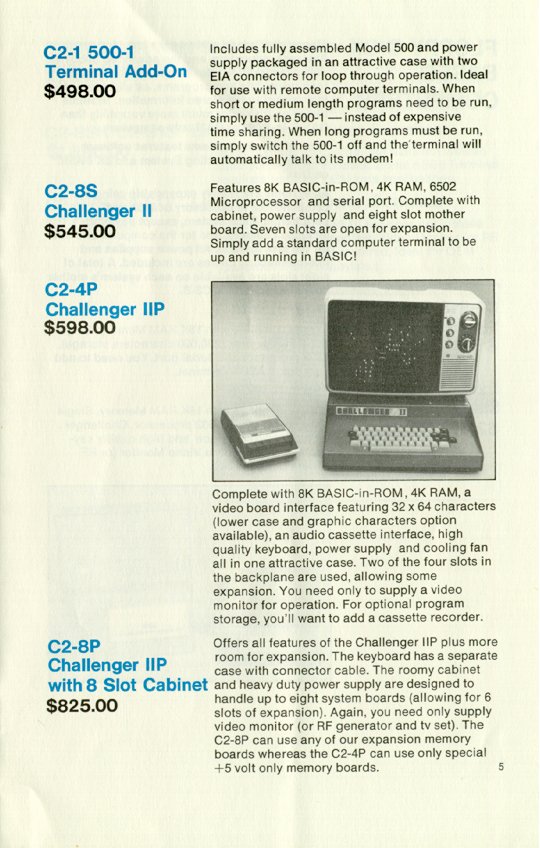

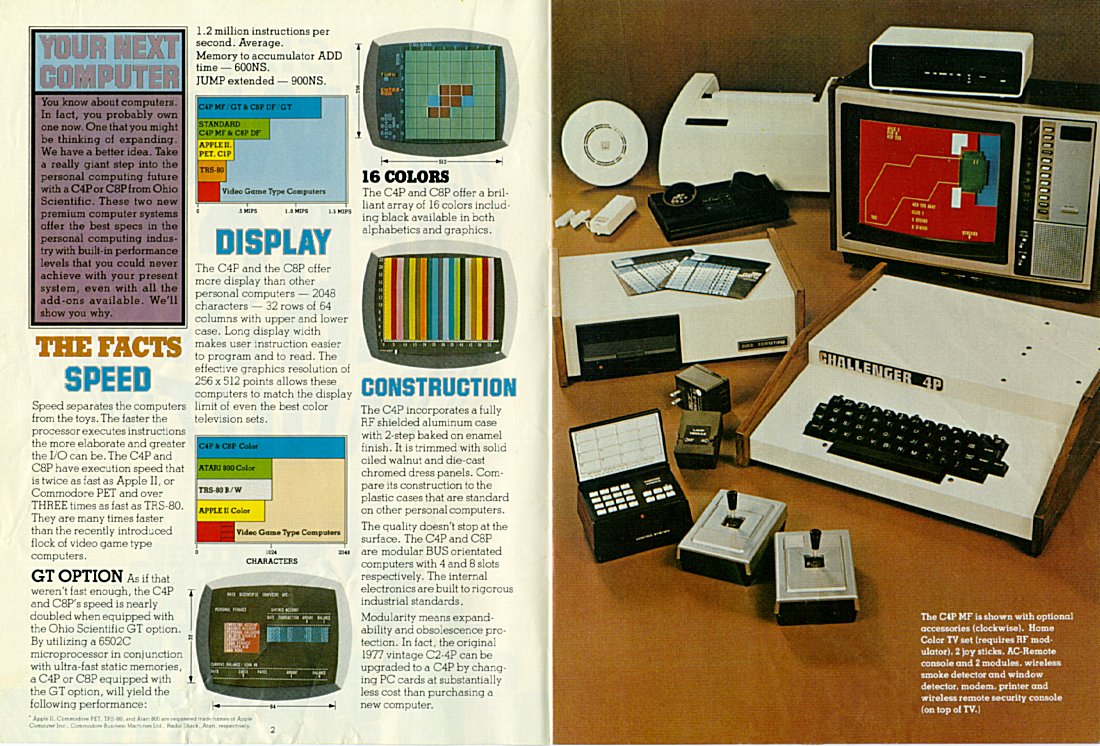

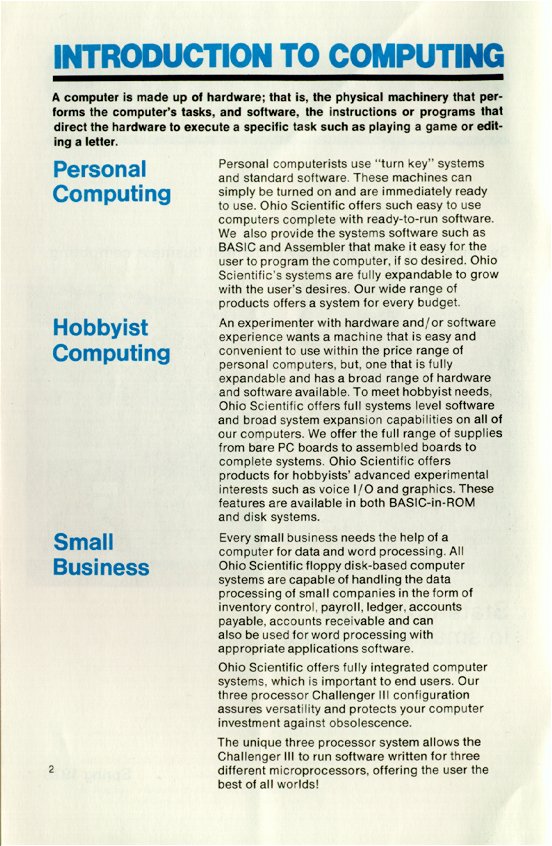

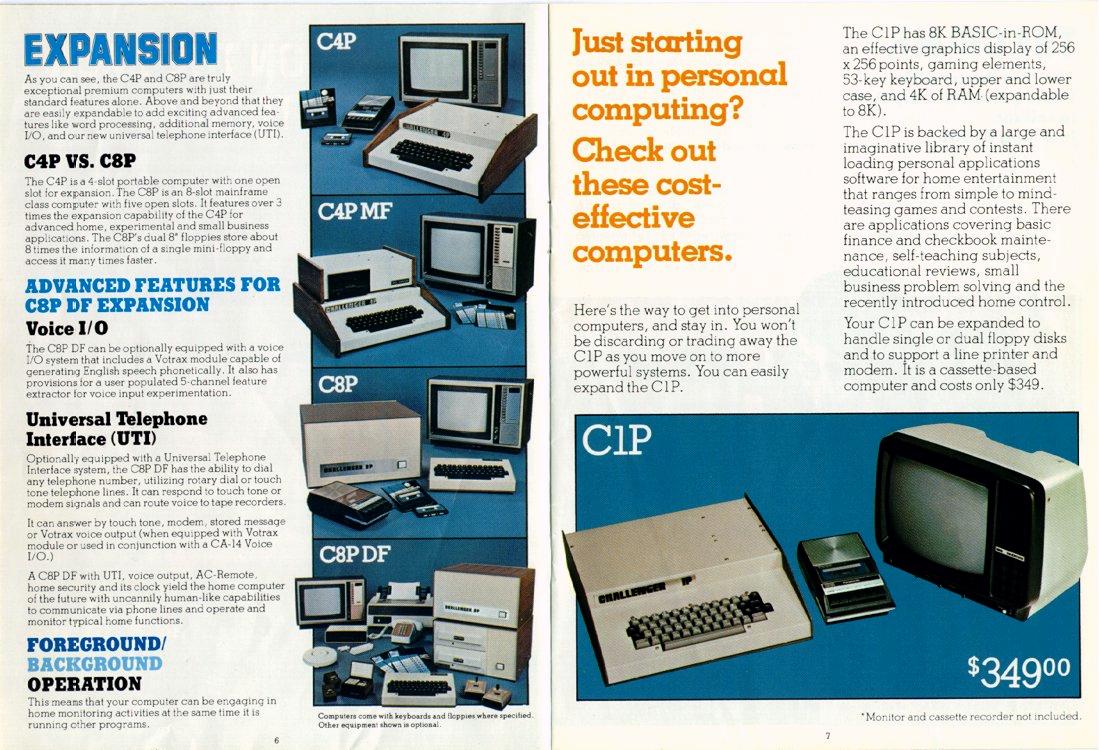

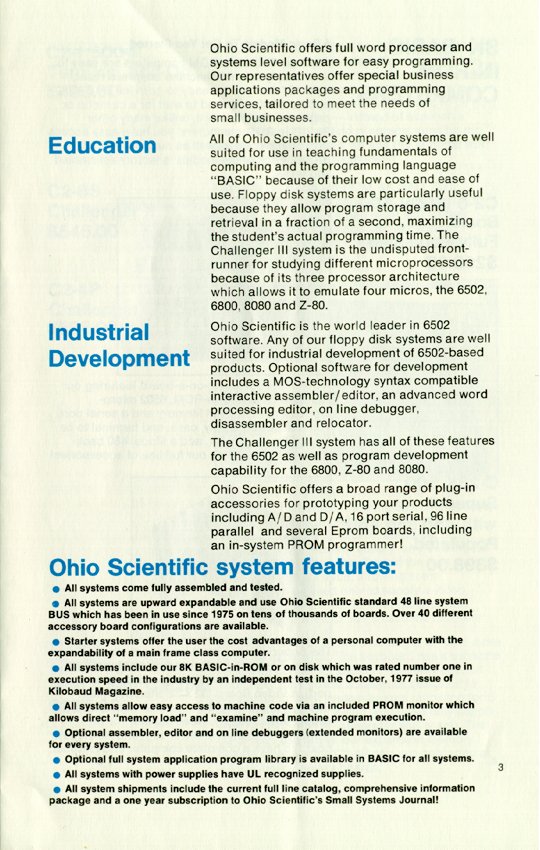

Thomas Buescher has a written nice OSI history overview here. Browse an OSI product pamphlet page 1, 2, 3, 4, 5 .

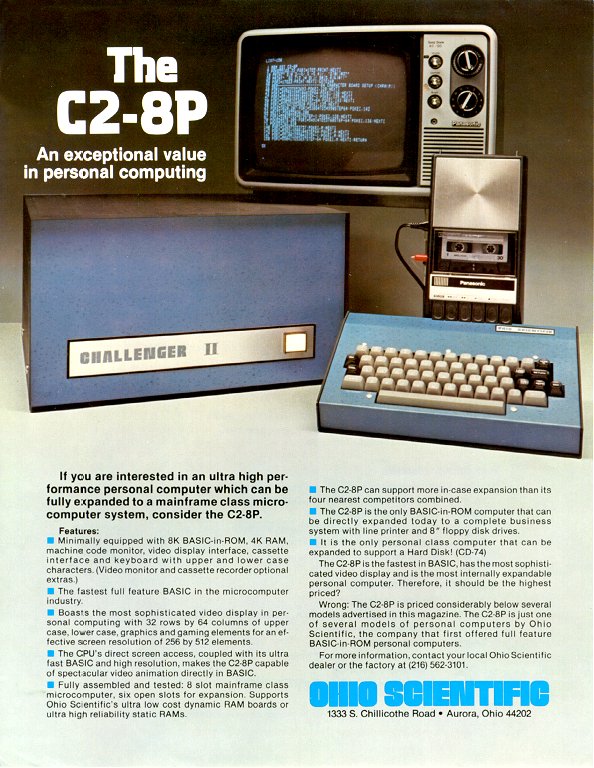

My introduction to OSI came in 1978, I was fortunate to get a C2-8P system, which looked something like this. It had an OSI 500 CPU board with 4K of 2102 static RAM 1Mhz 6502 & BASIC in ROM, a 540 monochrome composite video board with 2Kx7bit RAM & a 64x32 display + cassette interface, and a 420C 4K static RAM board using 32 2102A 1Kx1 static RAM chips, and a 9" B/W composite monitor. Total price was nearly $2000. Today you can emulate this system for free on your PC!

Emulator & Tools

This WinOSI Emulator is a rewrite of a UK101 emulator started by Ian McLaughlin at www.compukit.org, later modified & supported by Thomas Buescher at http://superboard.com.sapo.pt.

This version contains many changes and enhancements, including color, bitmap graphics, 32/64 character wide screen support with cropping for UK101 & C1/Superboard. Emulates OSI400 system along with Challenger C1/C2/C3/C4/C8 video and serial systems. Includes Tape, 5.25 & 8" Floppy, and Hard drive support, along with UK & US & custom ROMS
Updates, enhancements, suggestions welcome!
Last update June-4-2021
WinOSI emulator 32/64bit versions for XP to Win10

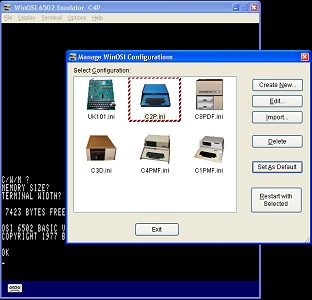

WinOSI example application window WinOSI example application window WinOSI example application window

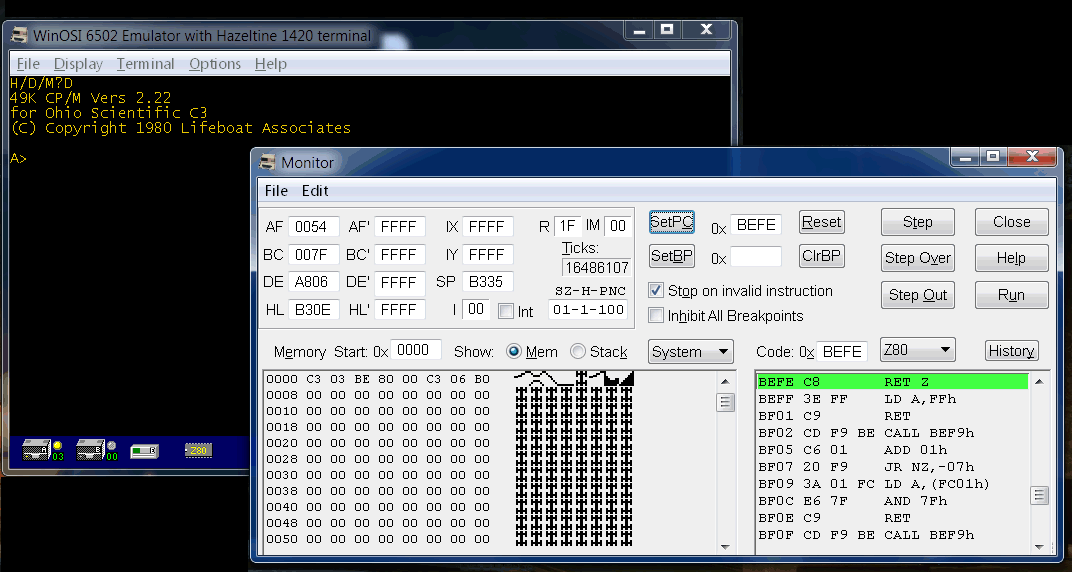

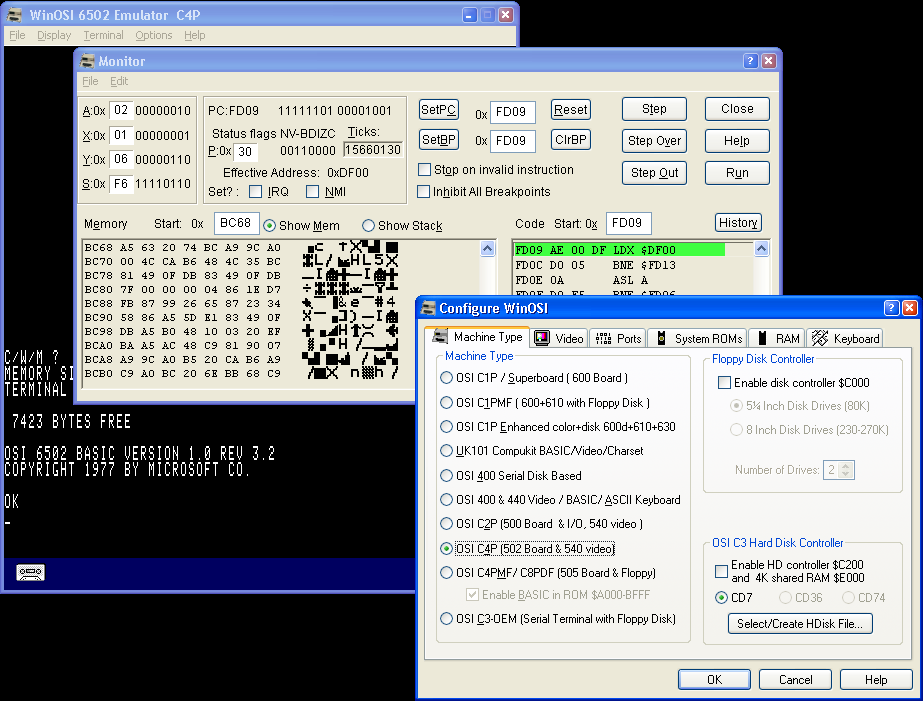

View machine internals, set custom options!

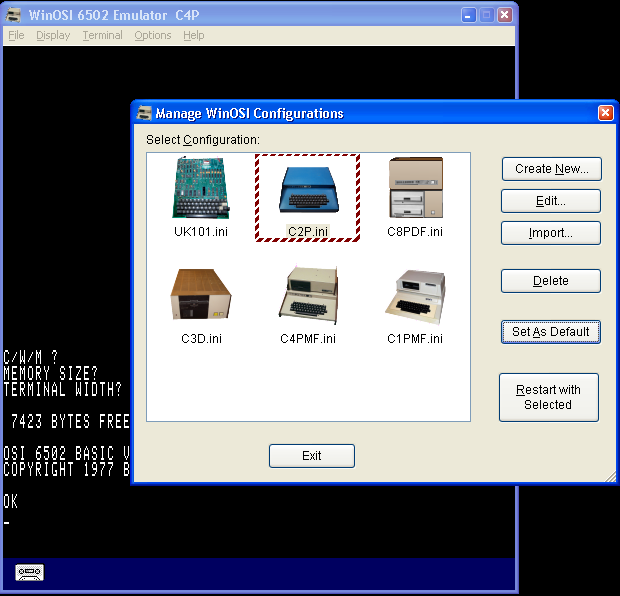

Create & Manage multiple configurations.

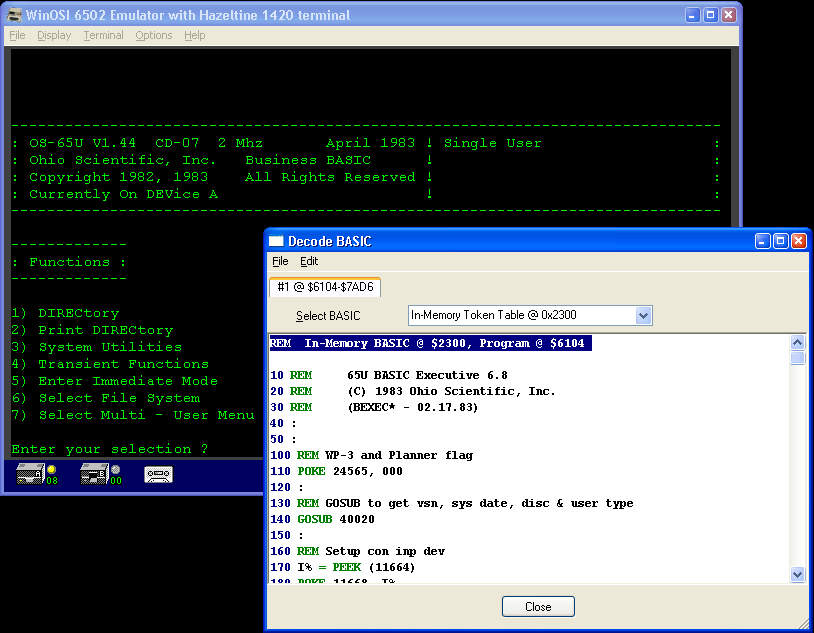

Decode BASIC hidden from user.

Emulator Files See note at bottom before downloading.

File Description Size
WinOSI-install_v1.8.9.exe
Rev.:1.8.9
The WinOSI Emulator for Win32/Win64 V1.8.9 (update 8/23/23)

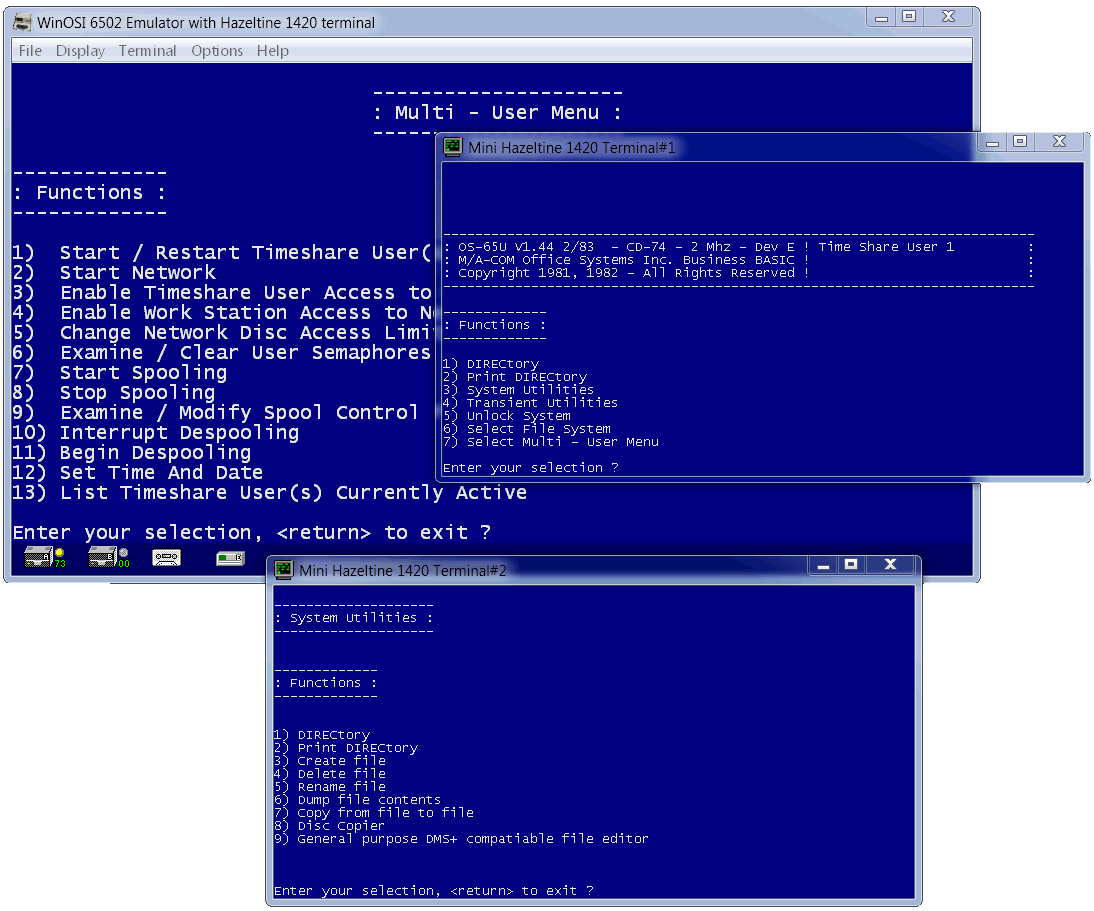

Now with full 6502/6800/Z80 support for OSI CP/M, OS65U Level3 Multiuser, & preconfigured setups

2.12 MB
WinOSI-install_v1.8.8.exe
Rev.:1.8.8
The WinOSI Emulator for Win32/Win64 V1.8.8 (update 8/02/23)

Now with full 6502/6800/Z80 support for OSI CP/M, OS65U Level3 Multiuser, & preconfigured setups

2.12 MB
WinOSI-install_v1.8.2.exe
Rev.:1.8.2
The WinOSI Emulator for Win32/Win64 BETA V1.8.2 (minor update 6/4/21)

Now with full 6502/6800/Z80 support for OSI CP/M and OS65U Level3 Multiuser

2.87 MB
WinOSI-install.exe
Rev.:1.6.9
The WinOSI Emulator for Win32/Win64 BETA V1.6.9 2/9/21

Why an installer? To manage font installation, file associations, sample files, and uninstall
2.83 MB
OsiEmu15.zip
Rev.:1.5
The WinOSI Emulator for Win32 "prerelease" V1.5.2 Now Supports OS65U! 478k
OsiEmu13.zip
Rev.:1.3
The WinOSI Emulator for Win32 (Win9x/ME/NT/2K/XP), including BASIC and system ROMs, disk image, basic & machine programs, souce code, reference & tools. Supports 5.25 & 8 inch floppy disk images, and cassette.

Includes projects for MS DevStudio 6
618k
C1-OS65D.zip OS65D V3.3 disk images for C1PMF 174KB
*Note:
I had a hard time deciding what to do with these old copyrighted pieces of historical computing. I don't intend to infringe on the copyright or intellectual property rights of their owners, and will remove any file, or get the appropriate permissions, if the owner can be found. You are of course entitled to these files if you own the actual hardware.

All copyrights of any third parties referred to herein are hereby acknowledged. There is no warranty, either expressed, or implied, relating to any of the content contained herein.
You may use the information contained herein for NON-COMMERCIAL purposes only and AT YOUR OWN RISK.


Get your retro Ohio Scientific T-Shirt! (USA customers)
This is a recreation of an original Ohio Scientific branded T-Shirt
Ohio Scientific Logo T-Shirt
Get your retro Ohio Scientific T-Shirt! (USA customers)

OSI Hardware

Ohio Scientific board image catalog

OSI Software

See the Collection of Ohio Scientific Software

Reference

Collection of reference materials
  1. Text file containing a list of known OSI hardware.
  2. Usenet message outlining the Kansas City Standard Cassette format which was used by OSI. (Don't miss Ed's conversion utility).

Requests:

I am on the lookout for anything I can add to the OSI archive. Including:

Links:


Dave's OSI repository featuring message boards, scans & manuals.

Compukit UK101 Home Page featuring an OSI emulator for Windows, scans & manuals.

Ed's DX-Forth and Utilities Page includes a Kansas-City Standard audio decoder/encoder, which can convert sampled OSI tapes to binary.

Ohio Superboard II Emulator Homepage Thomas Buescher's WinOSI project, the genesis of this emulator

OSI Challenger 1P emulator in JavaScript

Mark S. Csele's Superboard web page including OSI pictures & advertisements

The 6502 resource page An archive of all things related to the 6502 microprocessor

Aardvark adventure games

Build your own UK101 with FPGA

MCC Workshop Comupter corner part 3 features pictures of an OSI 400 Series machine
